leds.c File Reference

Methods to control voltage and current display. More...

#include <avr/io.h>
#include "xtypes.h"
#include "global.h"
#include "timer.h"
#include "safety.h"
#include "voltage.h"
#include "current.h"
#include "leds.h"

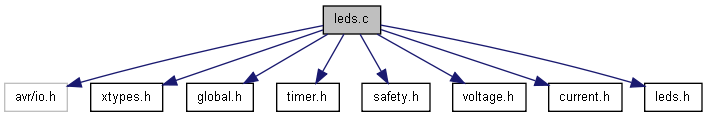

Include dependency graph for leds.c:

Go to the source code of this file.

Defines
#define	EXPORT
#define	VOLT_10V   448U
	ADC value for 10.0 Volt.
#define	VOLT_10V5   472U
	ADC value for 10.5 Volt.
#define	VOLT_11V   496U
	ADC value for 11.0 Volt.
#define	VOLT_11V5   520U
	ADC value for 11.5 Volt.
#define	VOLT_12V   544U
	ADC value for 12.0 Volt.
#define	CURR_20A   75U
	ADC value for 20 Ampere.
#define	CURR_15A   56U
	ADC value for 15 Ampere.
#define	CURR_10A   37U
	ADC value for 10 Ampere.
#define	CURR_5A   17U
	ADC value for 5 Ampere.
#define	CURR_2A   8U
	ADC value for 2 Ampere.
#define	CURR_0A   0U
	ADC value for 0 Ampere.
Functions
void	leds_Init (void)
	Init function to initiate related hardware.
void	leds_ShowVoltage (void)
	Method to display the battery voltage.
void	leds_ShowCurrent (void)
	Method to display the motor current.

---

Detailed Description

Author:

Philipp Bank

Copyright:

Creative Commons by-nc-sa 3.0 (http://creativecommons.org/licenses/by-nc-sa/3.0/)

This module provides functions to control the voltage and current LED displays.

Since you cannot light up both displays at the same time, another function (see timer.c) will be required to call leds_ShowVoltage() and leds_ShowCurrent() alternately.

Multiplexing doesn't require exernal means but is done in this functions.

Definition in file leds.c.
